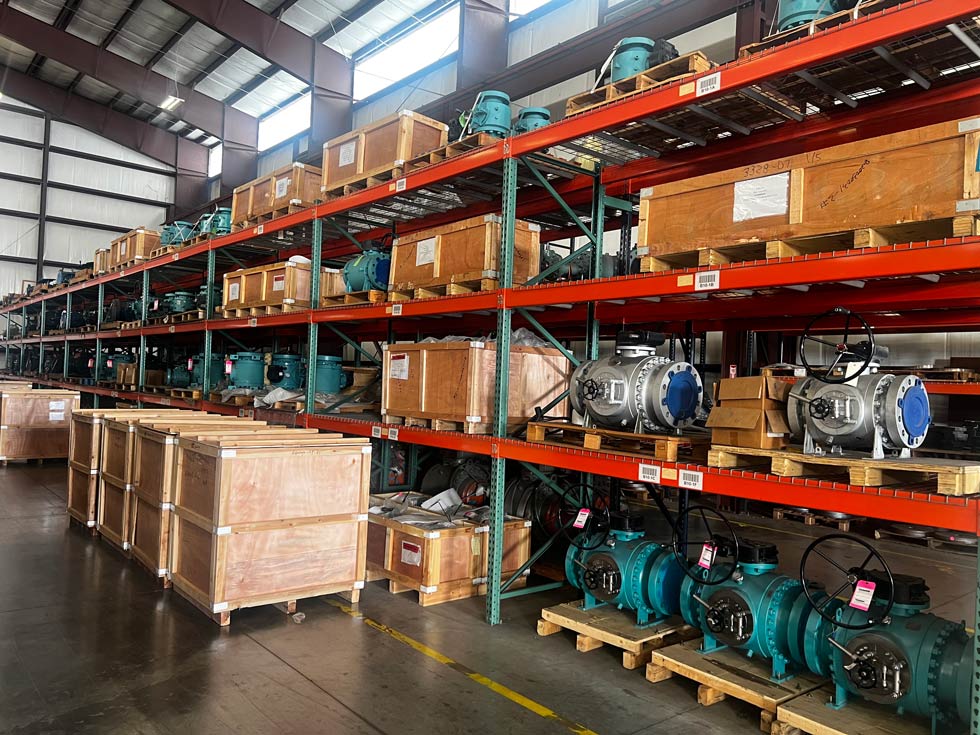

Our Inventory
- Size Range: 3” – 16”
- Pressure Class: ANSI 300 – 600
- Configuration: Bolted Body. Left or Right Catcher Plate, Full-Port (No Catcher Plate).
- Body Type: Carbon Steel
- End Connection: Raised Faced Flanged (RF)
- Specifications: API 6D Monogrammed. API 6FA, 607, 598. NACE MR-0175. ASME B16.10, B16.34.
All Chaoda Pig Valves stocked at PM have been thoroughly tested, field proven, and supported not only by PM, but the manufacturer. PM is Your Energy Products Partner.
Chaoda Pig Valve Benefits
Compared to Barrel Type Pig Launcher/Receiver
- 80%+ Reduction in Emissions: Significantly lower environmental impact compared to traditional systems.
- Compact Design: Smaller footprint with fewer piping and valves required, streamlining pigging facility setups.
- Dual Functionality: The pigging valve can also serve as a standard block valve, reducing the total number of valves needed.
- Faster Field Construction: Simple configuration and minimal ground support requirements reduce construction time, eliminating the need for complex piers and pilings.
- Enhanced Safety: Built-in safety features lower personnel risk during pigging operations.
- Lower Training & Operational Costs: Simplifies training and operational processes while reducing maintenance and overall lifecycle costs.
Key Differences: Chaoda Pig Valve vs. Traditional Pig Valve
| Chaoda Pig Valve | Traditional Pig Valve |
|---|---|
| CLOSURE DESIGN | |
| EZ LOADER Closure | Threaded Closure |
| Closure Support Included | Davit Support Required |
| Contained O-Ring Seal | Loose O-Ring Seal |
| Front Facing Handwheel | Front Facing Handwheel |
| Front Entry Pig Opening | Top Entry Pig Opening |
| No Separate Wrench Required | Wrench Required |
| Locked Closed | Not Locked Closed |
| CATCHER/LAUNCHER PLATE | |
| Heavy Duty Integral with Seat Seal | Separate Seat Ring |
| Gas Catcher Plate | Gas Catcher Plate |
| Liquids Catcher Plate | Not Available |
| Plate Reversible With EZ Disassembly | Reversible |
WHY PATTON MYHRE?
Your Trusted Midstream Valve Company for High-Performance Sourcing and Services
Explore Our Comprehensive Warehouse and Value-Added Services
- $25 Million in Valve and Automation Inventory
- Five Welding Bays for Customized Solutions
Capability to add pipe pups, build stem extensions, and adaptations - Fully Equipped Manual and CNC Machine Shop
For taper bore operations and valve modifications - Dedicated Valve Actuation Center (VAC)
All types of linear and quarter-turn automation capabilities - Five Hydrostatic Testing Benches
Dedicated office for third-party inspectors - In-House Mechanical Designer
Expertise in actuation and controls, driving better pricing and improved automation efficiency - Exceptional Customer Service & Flexibility
We respond quickly and cost-effectively - Proven Reliability
Achieving an 86% on-time delivery rate YTD
